Pyrrha is a filesystem cartography and correlation software focusing on visualization. It currently focuses on the relationship between executable files but aims at enabling anyone to map and visualize any relationship types. It uses the open-source code source explorer NumbatUI to provide users with an easy way to navigate through and search for path to function.

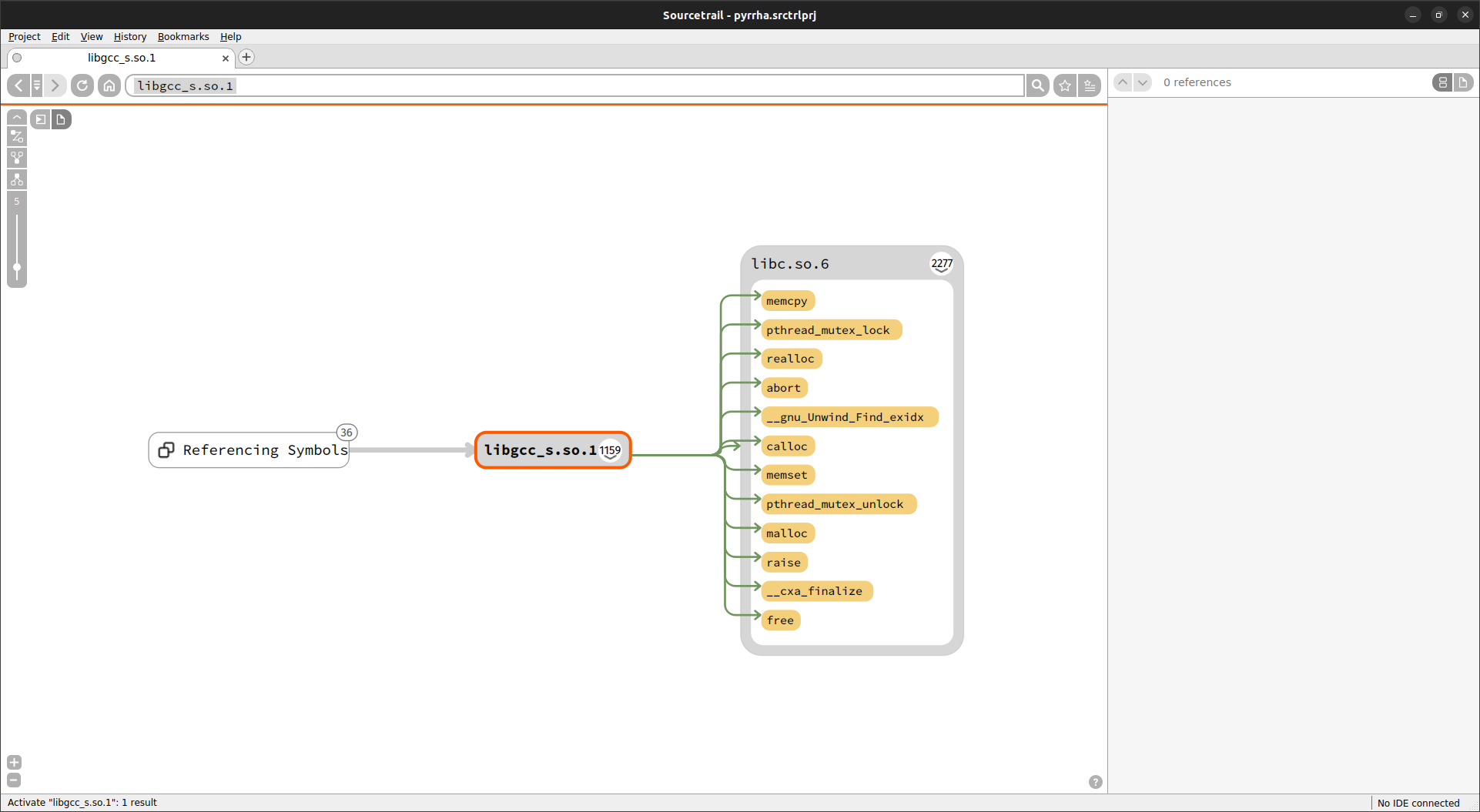

  • Symbols and libraries imported by libgcc_s.so.1.

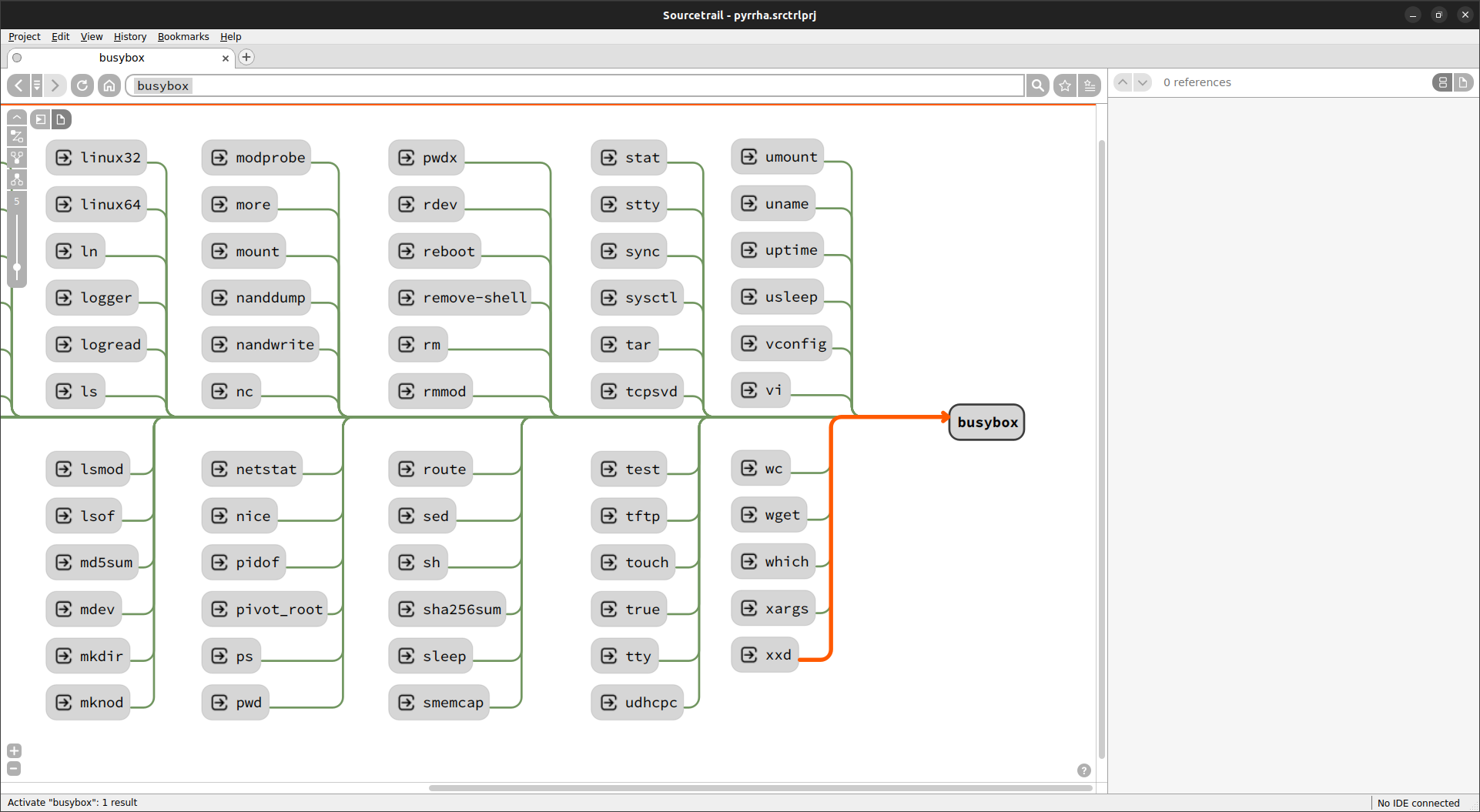

  • Symlinks pointing on busybox.

Installation

The installation is done in three parts:

  1. Install mapper external dependencies: IDA dissassembler (with the decompilation option for the exe-decomp mapper) and Quokka IDA plugin.
  2. Install Pyrrha itself.
  3. Install NumbatUI (or Sourcetrail) to be able to visualize Pyrrha's results.

Quick Start

  1. Install Quokka plugin by downloaded the appropriate version from its release page. Then follow the instructions according to your OS.

  2. Install Sourcetrail and Pyrrha.

    SOURCETRAIL_URL='https://github.com/CoatiSoftware/Sourcetrail/releases/download/2021.4.19/Sourcetrail_2021_4_19_Linux_64bit.tar.gz'
CHECKSUM=""f65a401daad8e16f29f7b2ff062a559999b6a8d44606db36cdf803de0cd7816d
EXTRACTION_DIR="/tmp/Sourcetrail_2021_4_19_Linux_64bit"
DOWNLOAD_PATH="$EXTRACTION_PATH.tar.gz"

wget $SOURCETRAIL_URL -O $DOWNLOAD_PATH
echo $CHECKSUM $DOWNLOAD_PATH | sha256sum -c

if [ $? == 0 ]; then
   echo '==== Install Sourcetrail'
   tar xf $DOWNLOAD_PATH -C $EXTRACTION_DIR
   sudo $EXTRACTION_DIR/Sourcetrail/install.sh
   rm -rf $DOWNLOAD_PATH $EXTRACTION_DIR
fi

# Install pyrrha
if [ $? == 0 ]; then
   echo '==== Install Pyrrha'
   pip install pyrrha-mapper
fi
    1. Download last Sourcetrail release, unzip it and run the setup.exe.
    2. Install pyrrha: pip install pyrrha-mapper
    1. Download last Sourcetrail release, and install it following Sourcetrail documentation.
    2. Install pyrrha: pip install pyrrha-mapper

Tested only for last Ubuntu/Debian.

First install Quokka plugin by downloaded the appropriate version from its release page.

Then run the following script that will clone and build NumbatUI and install Pyrrha. NumbatUI will in numbatui/build/Release/app.

# Prerequisites for Numbat UI
sudo apt-get update
sudo apt-get install -y \
             cmake \
             git \
             build-essential \
             libboost-filesystem-dev libboost-program-options-dev libboost-system-dev libboost-date-time-dev \
             qt6-svg-dev qt6-base-dev qt6-5compat-dev \
             unzip wget \
             libclang-17-dev clang-17

# Clone and Build NumbatUI
git clone https://github.com/quarkslab/NumbatUI.git numbatui
cd numbatui
mkdir -p build/Release
cd build/Release
cmake -DCMAKE_BUILD_TYPE="Release" -DBUILD_CXX_LANGUAGE_PACKAGE=ON -DBUILD_PYTHON_LANGUAGE_PACKAGE=ON ../.. && make NumbatUI -j $(nproc)

# Install pyrrha
pip install pyrrha-mapper

Note

Detailed instructions can be found on the dedicated documentation page.

Usage

The usage workflow is composed of two steps which allow you to separate DB creation and result visualization.

  1. Run Pyrrha to obtain NumbatUI compatible files (*.srctrlprj for the project file and *.srctrldb for the DB file). With the python package, you can just launch the command pyrrha.
  2. Visualize your results with Sourcetrail/NumbatUI.

Note

The detailed documentation of each mapper is available in the documentation.
